Lot & Vision · Concept package · prepared for Sample client
Two-Acre Mediterranean Estate
Issued
2026-10-24
Revision
R1 · first concept
Lot2.00 acres230 × 379 ft
House, heated3,582 sq ft4 bed · 3 bath
Under roof6.2%of the lot, all buildings

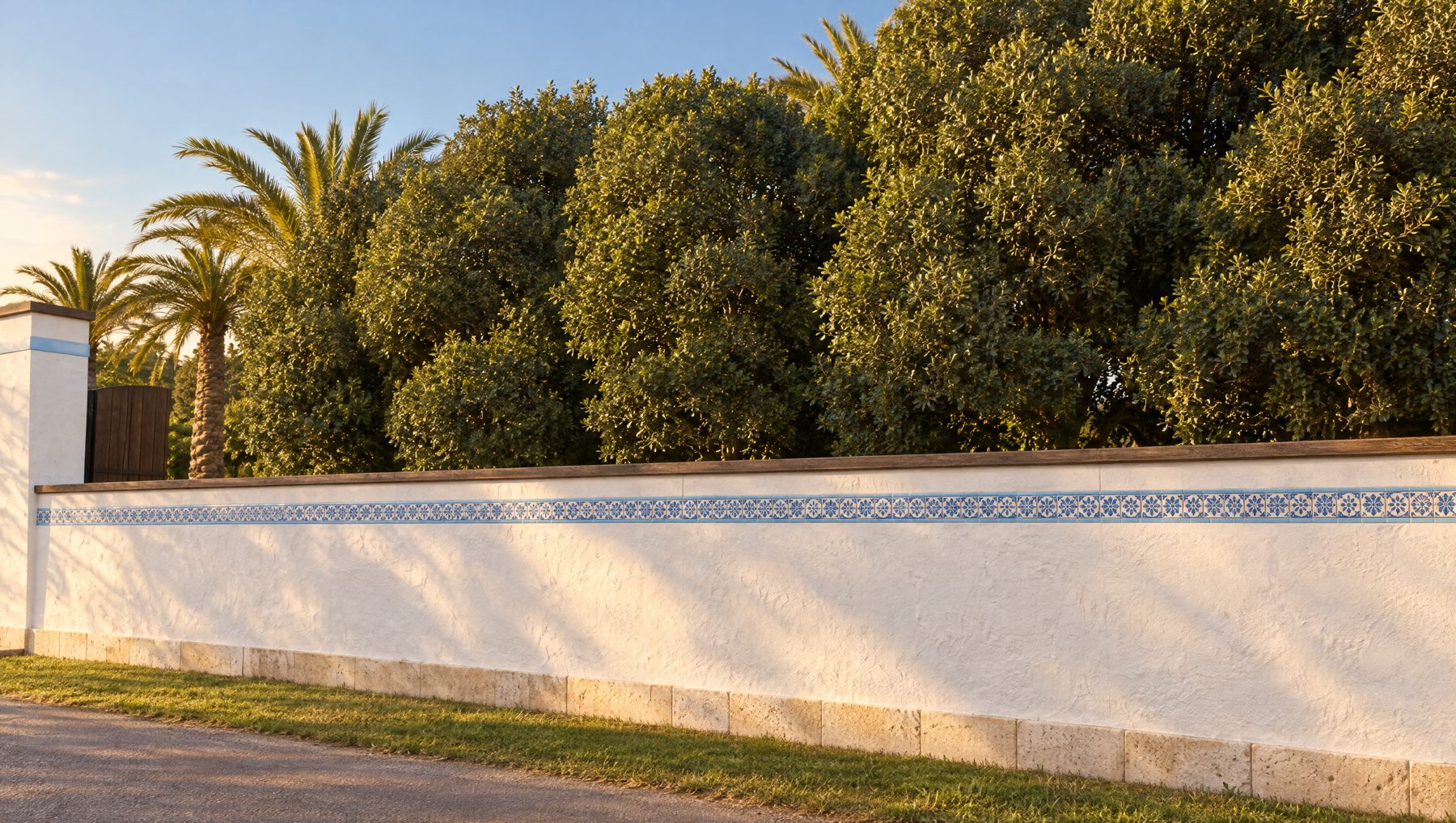

Perimeter wall8 ftwith a privacy tree ring
Site pieces35plus 30 placed trees and furnishings

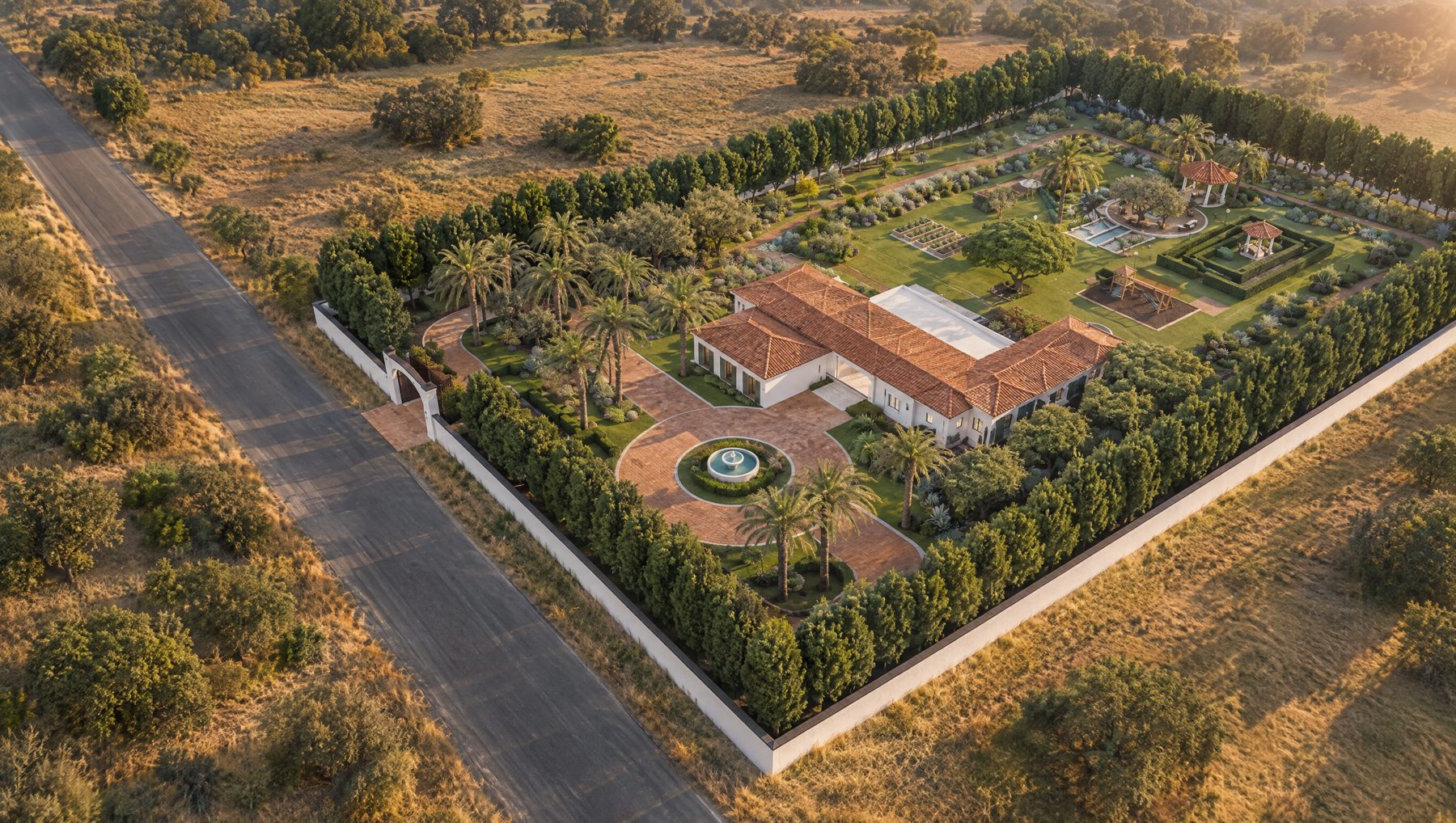

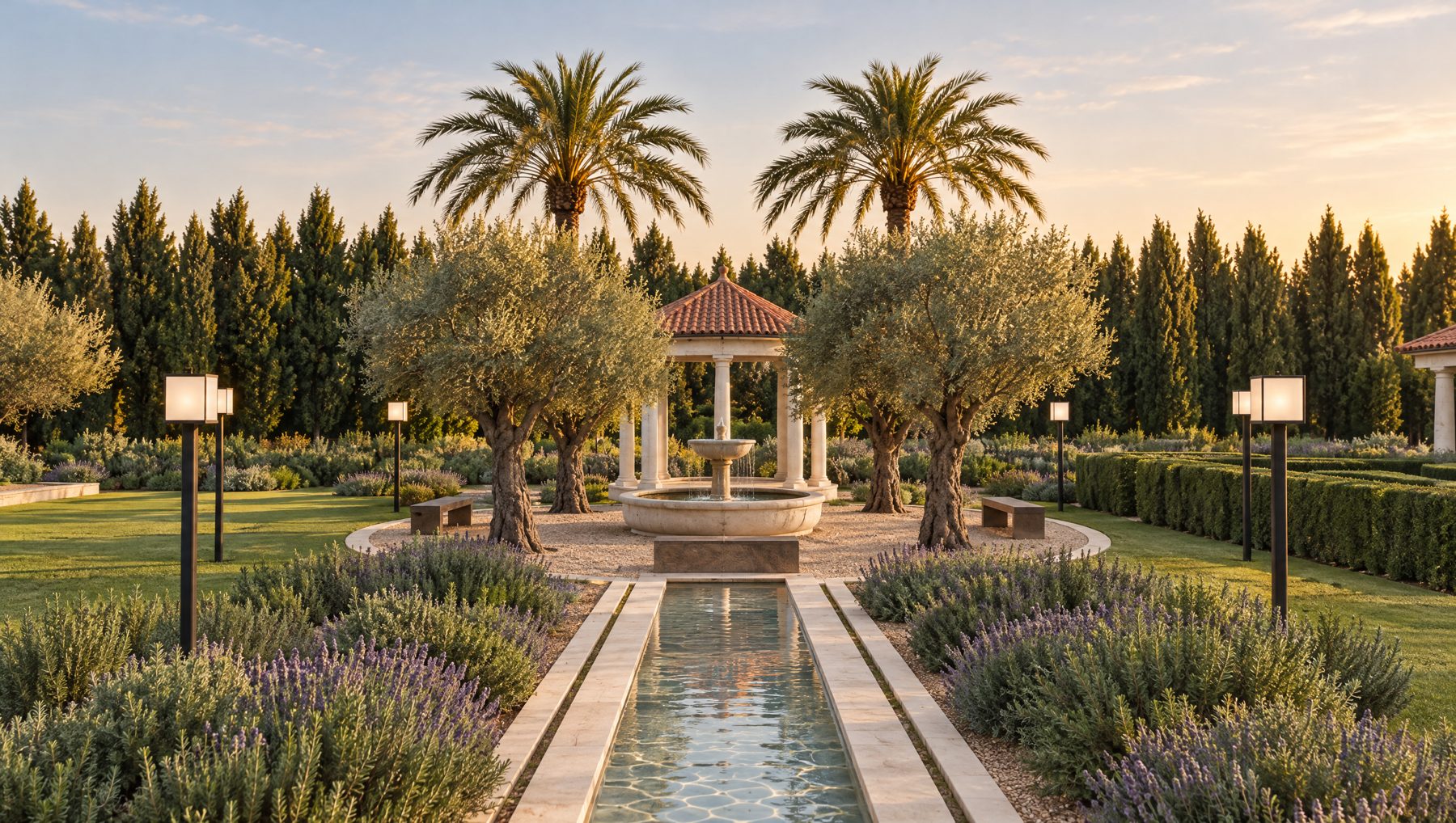

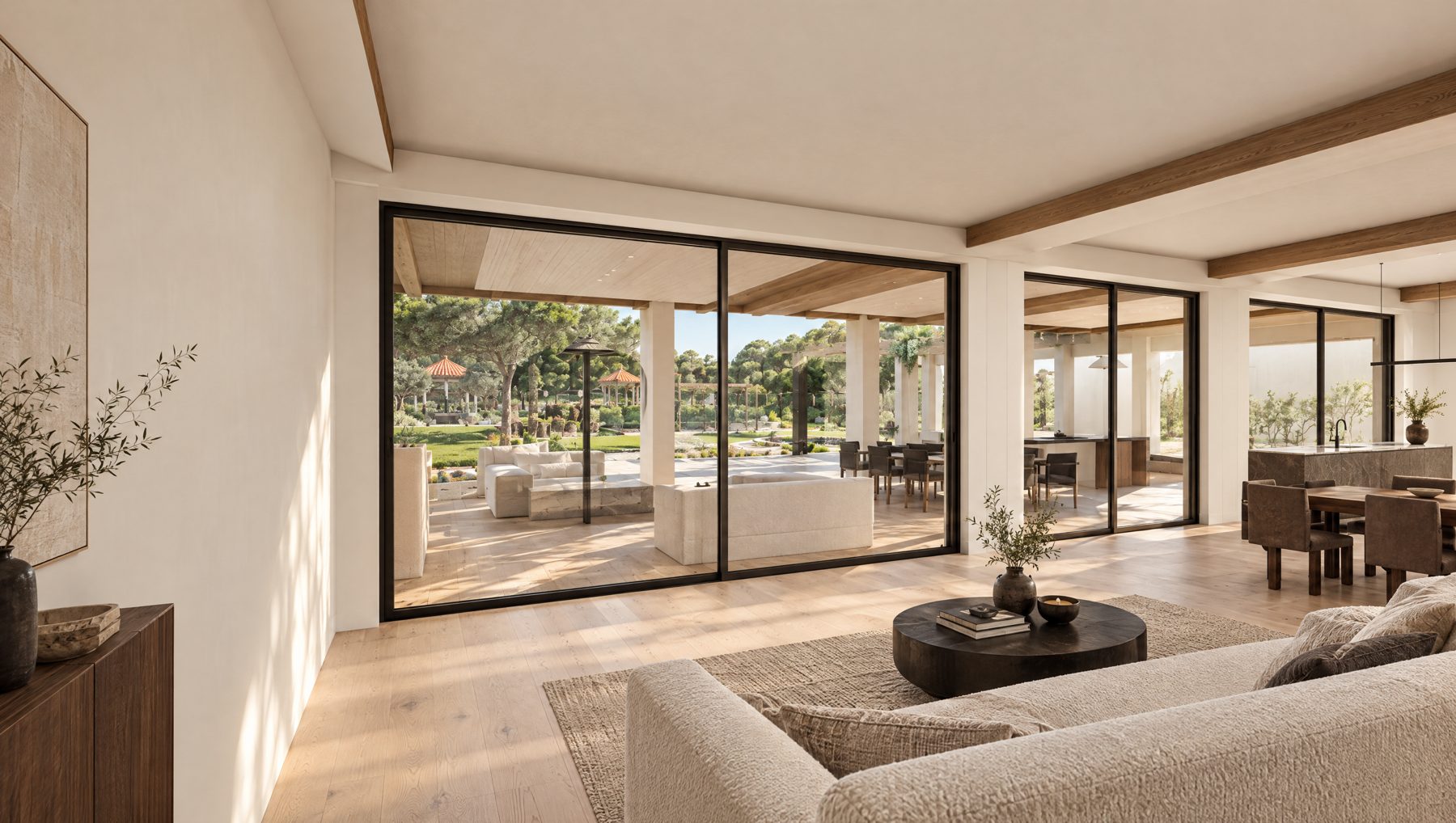

The estate
Photo-real concept images · tap a picture's button to see the 3D model it was made from

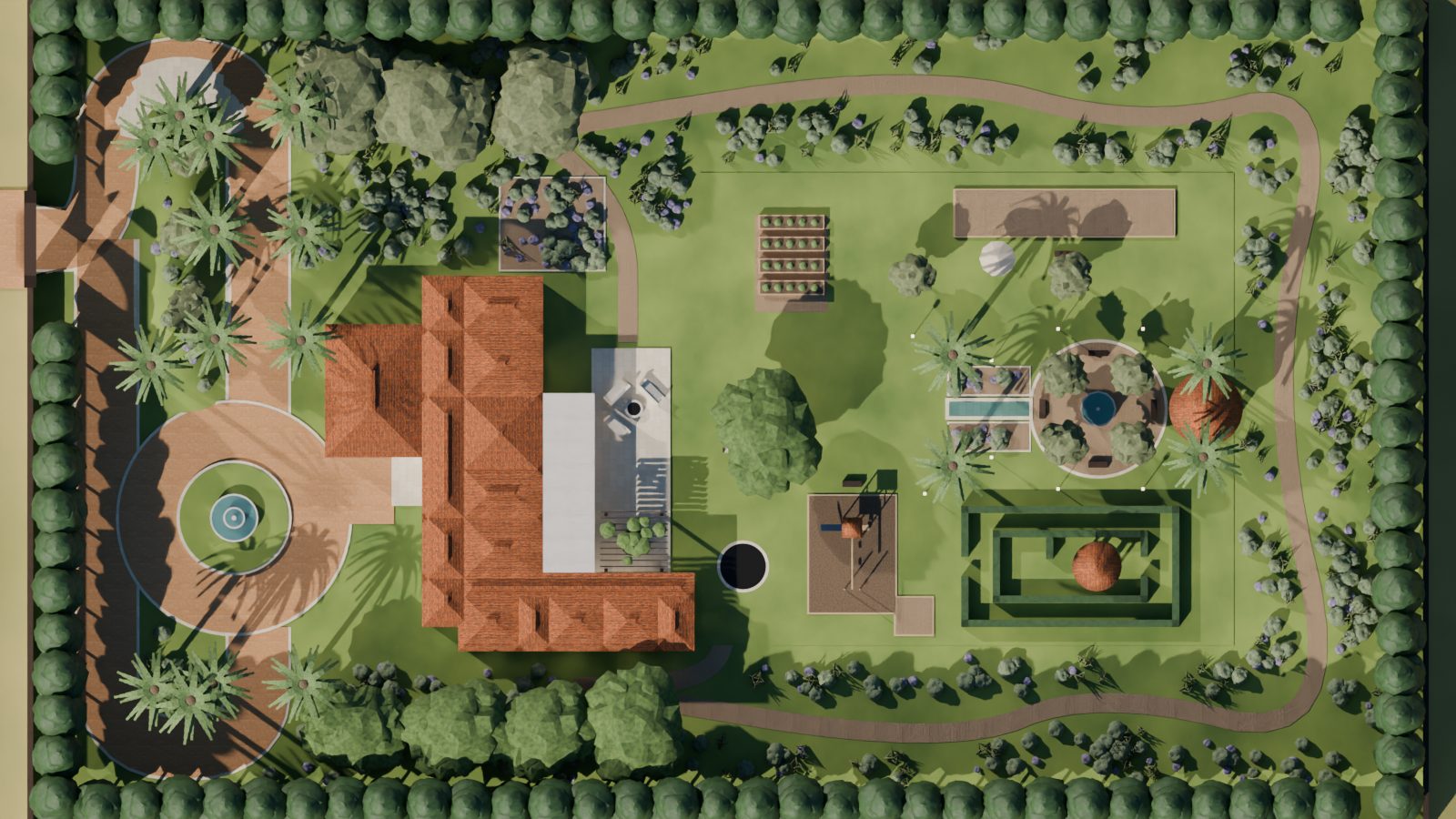

Site plan
North is up · street on the south edge · true scale
Open the editable plan
Drag, resize, rotate, add or remove anything at real scale, then press Save for Blender. Your saved plan is what the next round is built from.
This package includes
- Editable real-scale plan of the whole property
- 10 photo-real images, each with its 3D model view
- Site plan and room schedule
- Blender scene file (.blend) of the whole estate, attached to your delivery email
- One round of changes
The Blender scene comes as a zip attached to the email that brings you this page; the full-size version is available on request. Blender is free from blender.org.
What happens next
1 round of changes left in this package · extra rounds $195Your next round
- Open the editable plan and change anything: move, resize, add or remove pieces at real scale.
- When it looks right, press Save for Blender. If the page won't let you save, press Copy my design and send it back to us.
- Tell us anything the pictures should show differently: materials, planting, a view you want to see.
- We send the updated package within 2 business days.
| Revision | Date | What changed |
|---|---|---|
| R1 | 2026-10-24 | First concept |
Schedules
Every size is the real built size| Room | Size | Sq ft |
|---|---|---|
| Living room | 20 × 20 ft | 388 |
| Primary bedroom | 18 × 20 ft | 355 |
| Entry gallery | 33 × 10 ft | 323 |
| Kitchen + island | 16 × 20 ft | 323 |
| Family hall | 5 × 61 ft | 299 |
| Dining | 13 × 20 ft | 258 |
| Primary bath | 13 × 20 ft | 258 |
| Bedroom 2 | 13 × 15 ft | 194 |
| Bedroom 3 | 13 × 15 ft | 194 |
| Bedroom 4 | 13 × 15 ft | 194 |
| Primary hall | 18 × 10 ft | 178 |
| Scullery + pantry | 16 × 10 ft | 161 |
| Primary walk-in closet | 13 × 10 ft | 129 |
| Laundry + mudroom | 11 × 10 ft | 113 |
| Bath 2 | 13 × 8 ft | 108 |
| Bath 3 | 13 × 8 ft | 108 |
| Heated total | 3,582 |
| Outdoor rooms at the house | Size | Sq ft |
|---|---|---|
| Arched entry porch | 13 × 10 ft | 129 |
| 3-car garage | 33 × 23 ft | 753 |

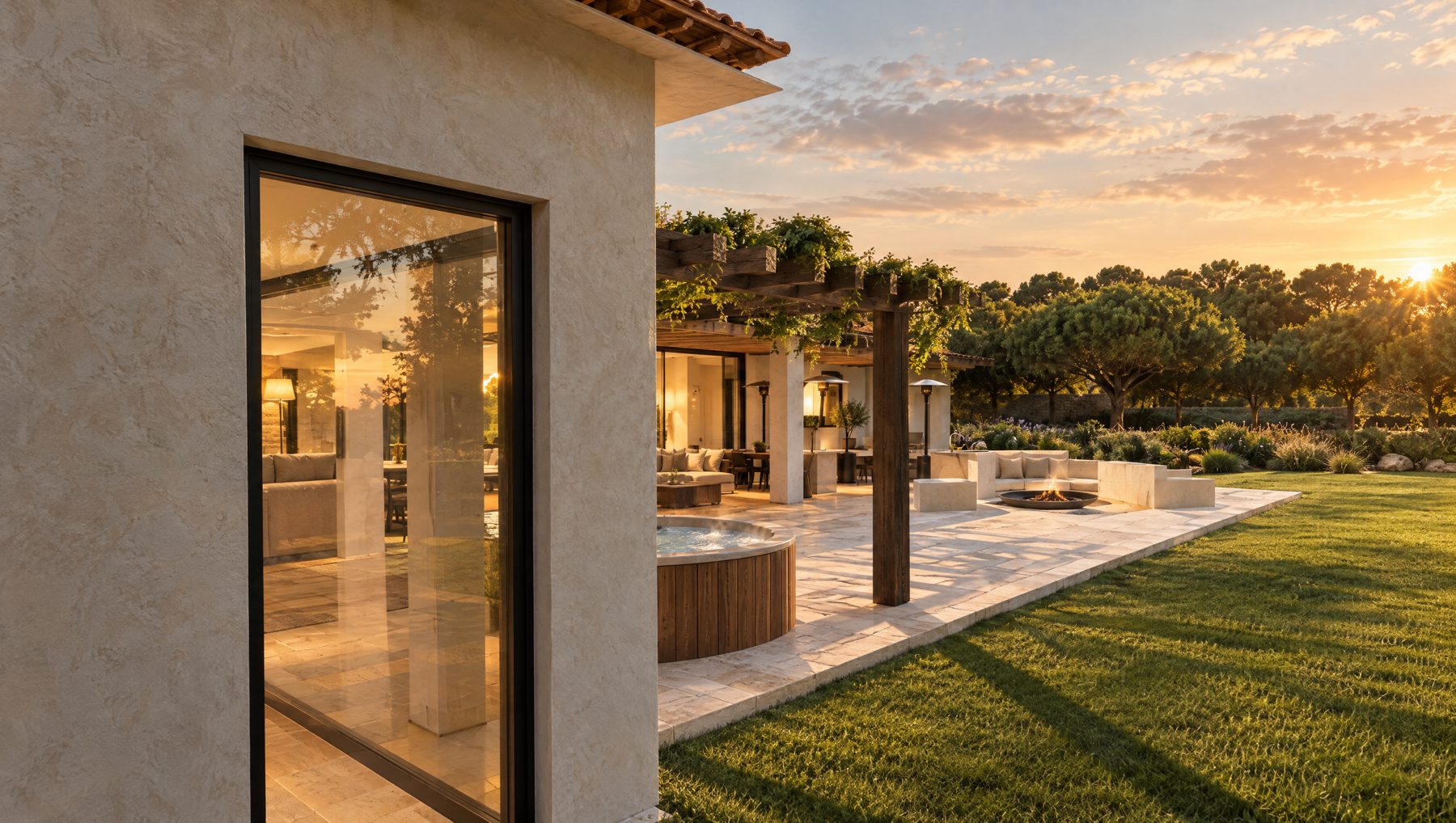

| All-season loggia: fireplace, heaters, drop screens | 49 × 15 ft | 727 |
| Stone terrace | 62 × 21 ft | 1,329 |
| Fire-pit lounge | 20 × 20 ft | 388 |
| Spa pergola | 16 × 16 ft | 269 |
| Across the site | What | Size |
|---|---|---|
| Arrival | ||

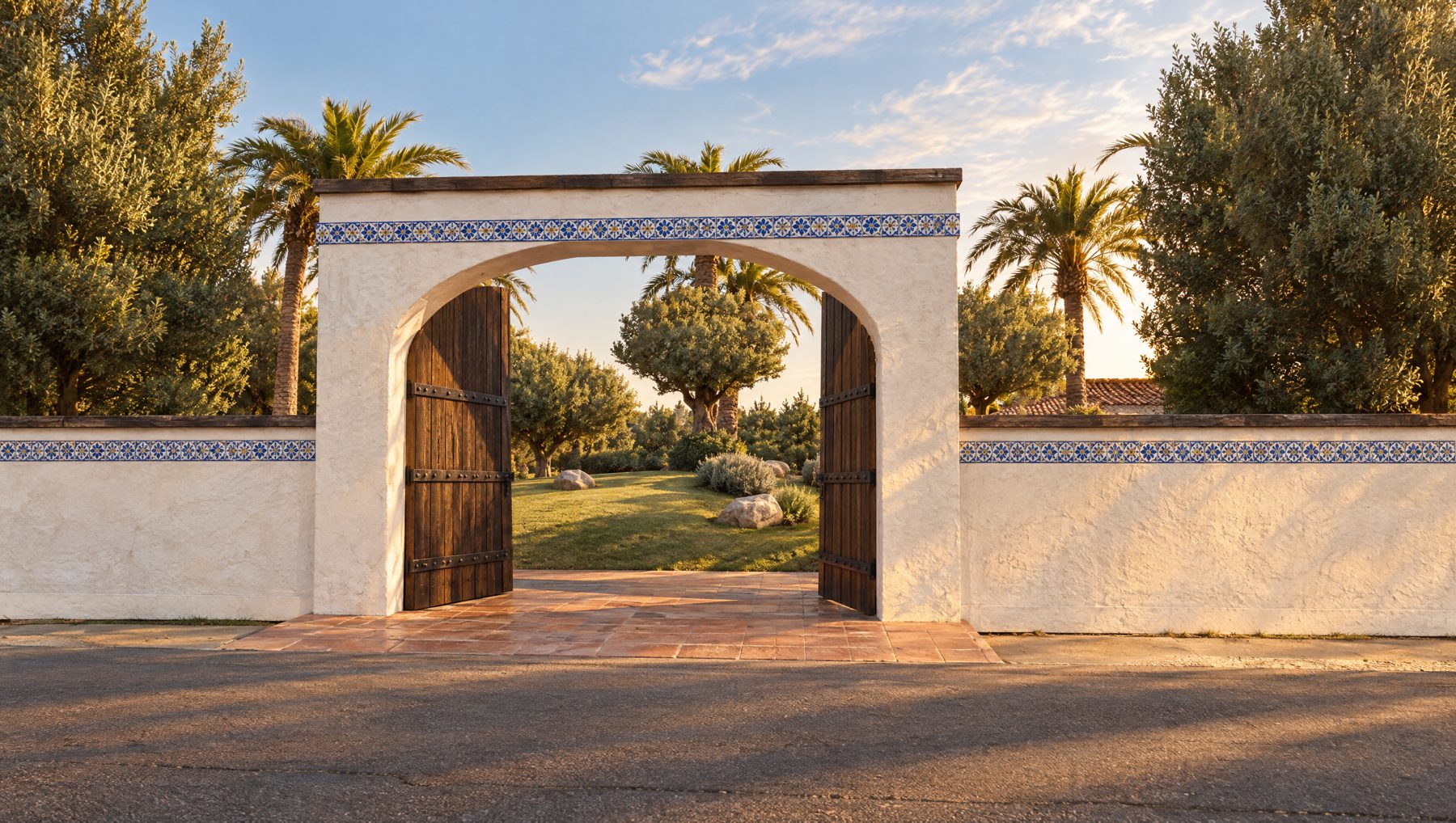

| Automatic oak gate, 20 ft wide | Entrance gate | 20 × 4 ft |

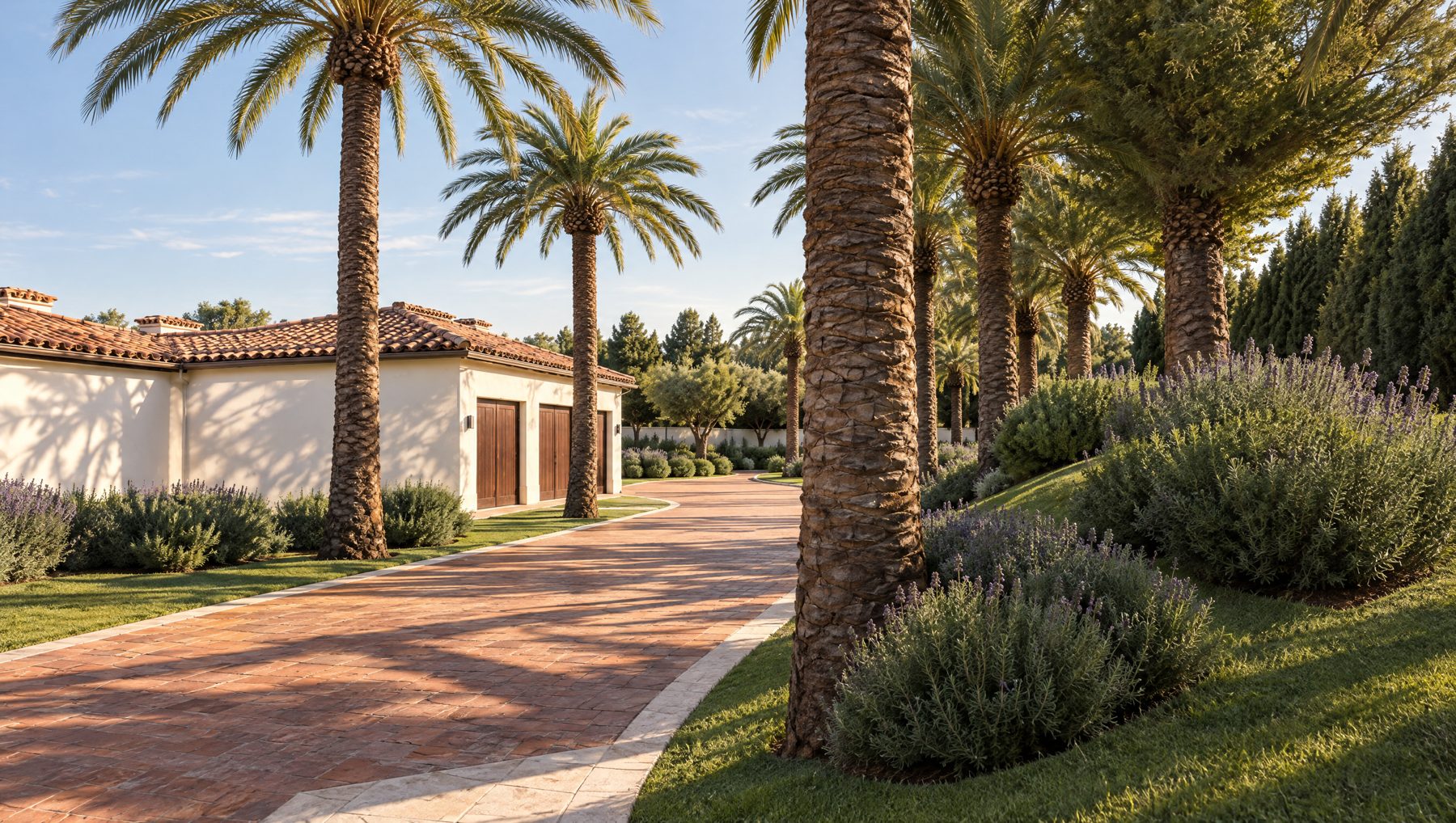

| Drive, west arm (in) | Driveway | 220 ft long, 16 ft wide |
| Drive, east arm (out) | Driveway | 212 ft long, 16 ft wide |

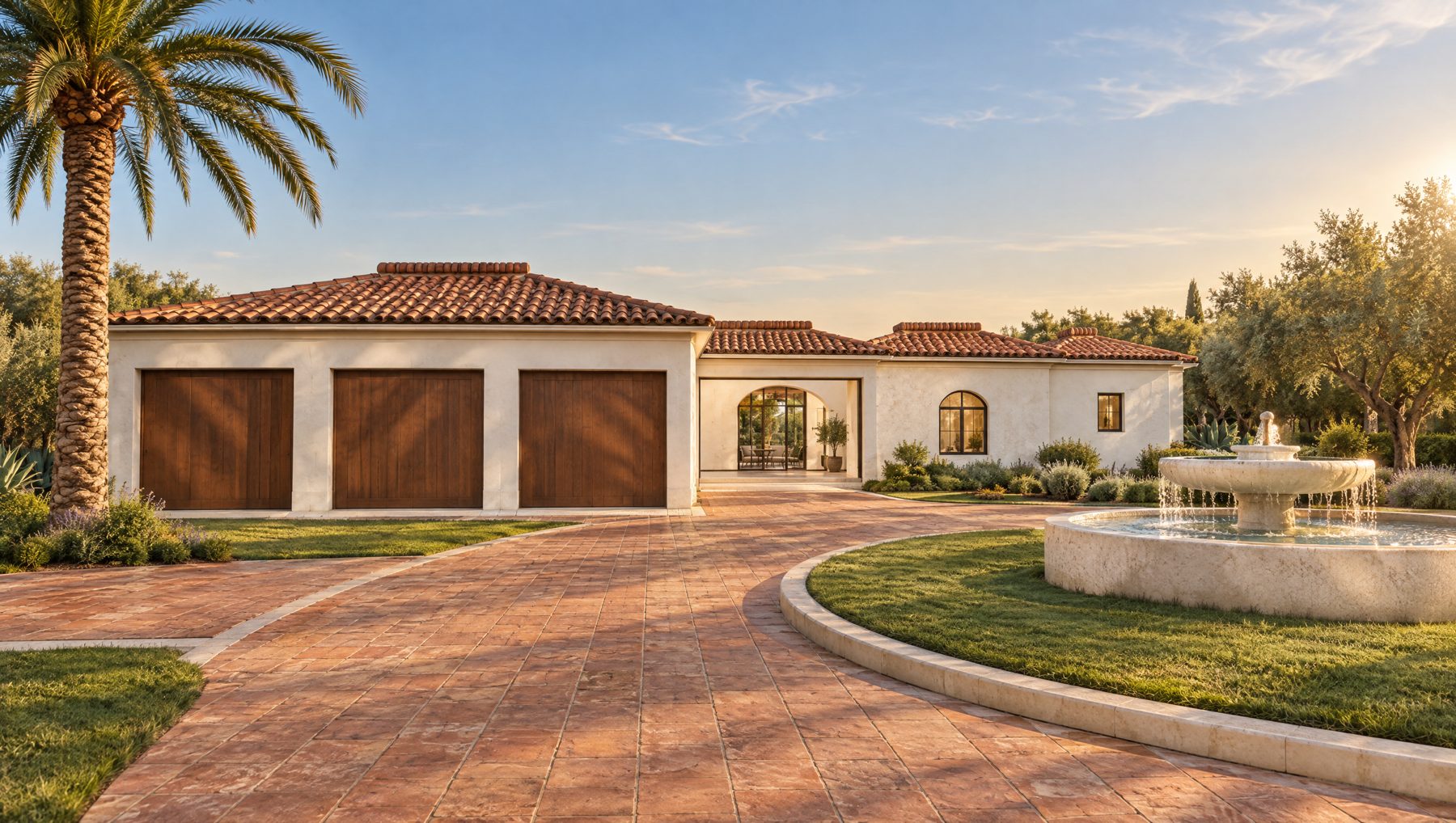

| Arrival roundabout + fountain | Roundabout | 62 × 62 ft |
| Entry forecourt | Parking court | 20 × 19 ft |
| Shaded walking loop | Garden path | 624 ft long, 5 ft wide |
| Garden path, west | Garden path | 68 ft long, 5 ft wide |
| Garden path, east | Garden path | 56 ft long, 5 ft wide |
| Buildings | ||
| Belvedere pavilion | Pavilion | 17 × 17 ft |
| Maze lookout | Pavilion | 10 × 10 ft |
| Water, sport + play | ||
| Stone water rill (4 in deep) | Pond / rill | 4 × 22 ft |
| Bocce court | Bocce court | 12 × 59 ft |
| Play pad (soft bark) | Playground | 31 × 23 ft |
| Sandpit | Playground | 10 × 10 ft |
| Olive court | Garden court | 36 × 36 ft |
| Land + planting | ||

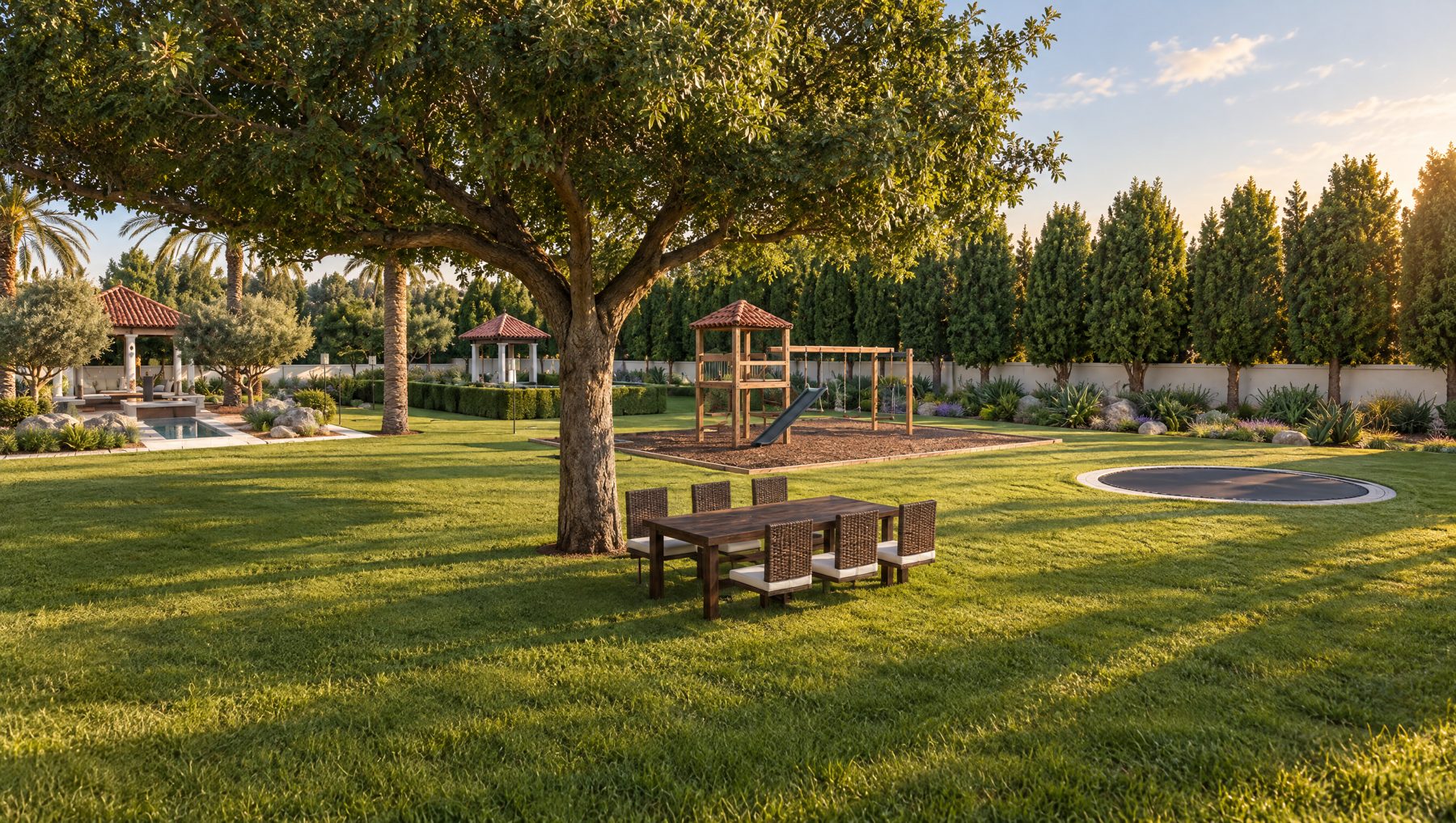

| Open play lawn | Lawn | 128 × 144 ft |
| Olive + carob shade grove | Tree grove | 191 × 31 ft, olive every 26 ft |
| Cork-oak shade walk, west | Tree grove | 26 × 253 ft, cork oak every 26 ft |
| Carob shade walk, east | Tree grove | 23 × 249 ft, carob every 26 ft |
| Lavender + rosemary garden | Garden beds | 25 × 28 ft |
| Kitchen garden: raised beds | Garden beds | 26 × 20 ft |
| Lavender border, west | Garden beds | 7 × 22 ft |
| Lavender border, east | Garden beds | 7 × 22 ft |

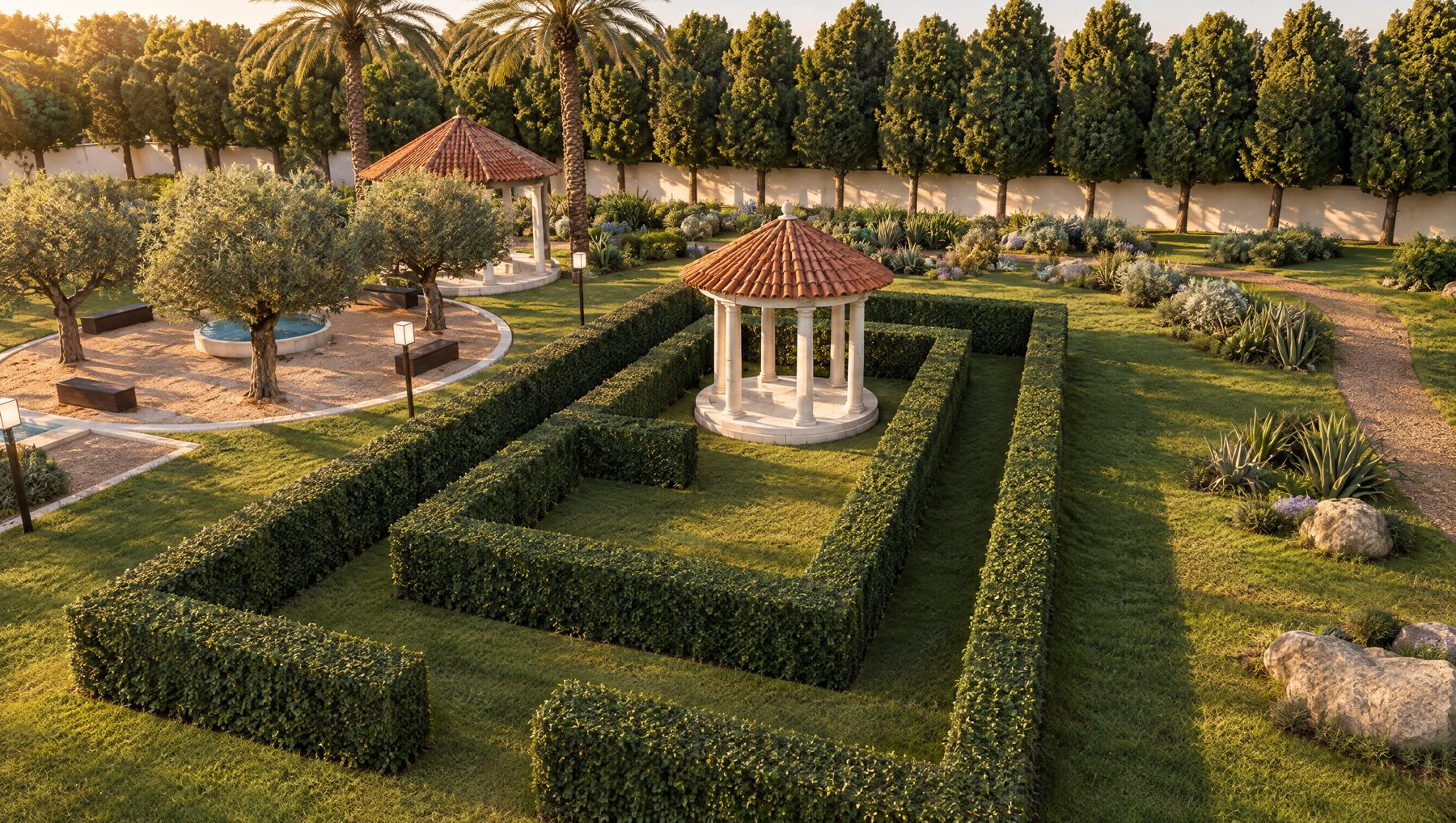

| Maze hedge | Hedge | 14 × 2 ft, 3 ft tall |
| Maze hedge | Hedge | 14 × 2 ft, 3 ft tall |
| Maze hedge | Hedge | 33 × 2 ft, 3 ft tall |
| Maze hedge | Hedge | 2 × 59 ft, 3 ft tall |
| Maze hedge | Hedge | 2 × 59 ft, 3 ft tall |
| Maze hedge | Hedge | 20 × 2 ft, 3 ft tall |
| Maze hedge | Hedge | 7 × 2 ft, 3 ft tall |
| Maze hedge | Hedge | 7 × 2 ft, 3 ft tall |
| Maze hedge | Hedge | 2 × 42 ft, 3 ft tall |
| Maze hedge | Hedge | 2 × 42 ft, 3 ft tall |
| Maze hedge | Hedge | 6 × 2 ft, 3 ft tall |
| Street-side privacy berm | Earth berm | 85 × 24 ft, 6 ft tall |
Assumptions and what to check
Assumed in this concept
- Lot of 230 × 379 ft (2.00 acres), street along the south edge, flat ground.
- Mild Mediterranean climate (Southern California) for planting and outdoor living.
- Perimeter wall at 8 ft, the usual ceiling with a permit; 6 ft is usually allowed by right.
- House sized as a right-sized luxury 4 bed / 3 bath, about 3,600 sq ft heated, with a 3-car garage.
- Planting uses drought-tolerant Mediterranean species: holm oak, olive, carob, cork oak, date palm, lavender, rosemary.
Check with the county before building
- Front setback and the maximum height of walls and gates at the street; many counties cap the front at 3 ft.
- Wall over 6 ft: usually a permit.
- Pool, spa and pavilions: permits and pool-barrier rules.
- Lot coverage and impervious-surface limits for the tiled drive and roundabout.
Concept images, not construction documents. Pictures are illustrations made from a 3D model and finished with AI; they are not photographs of a real property. Plans are for planning and discussion only and are not for permits or construction. A licensed architect or engineer must prepare any drawings used to build.
